Konsep Manajemen
Tanggung jawab Inovasi Integritas Win-Win;
Budaya Tim
Thanksgiving Values Menghormati upaya tim;
Tujuan Pelayanan
Kualitas pertama kepuasan pelanggan peningkatan profesional;
Cara yang Berkelanjutan
HONSHI tumbuh secara berkelanjutan, untuk mendukung pelanggan kami yang berharga dengan solusi interkoneksi yang disesuaikan secara fleksibel.
Penjualan & dukungan:
Tempat asal: | Cina |
Nama merek: | HONSHI |
Sertifikasi: | ISO9001/ISO14001/ROSH/Reach |
Nomor model: | B25XXAAXXXB01 |
Kuantitas min Order: | 100 buah |
---|---|
Harga: | 0.1-0.5 usd |
Kemasan rincian: | Baki/tas Pe |
Waktu pengiriman: | 7-10 hari |
Syarat-syarat pembayaran: | T/t, paypal |
Menyediakan kemampuan: | 500000kpcs |
Aplikasi: | Elektronik | Nama Produk: | Kabel Pita Datar |
---|---|---|---|
Bahan kontak: | Kuningan | Bahan: | Konduktor tembaga kaleng |
Kabel: | Kabel UL 26-28AWG | Panjang: | Panjang Disesuaikan |
Kemasan: | PE.Tas/Tape&Reel | Keterangan: | Produk listrik |
Moq: | 100 pcs | LAYANAN: | Layanan OEM, ukuran, warna, desain khusus apa pun dapat diterima. |

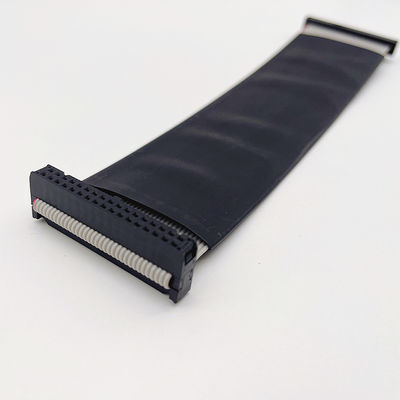

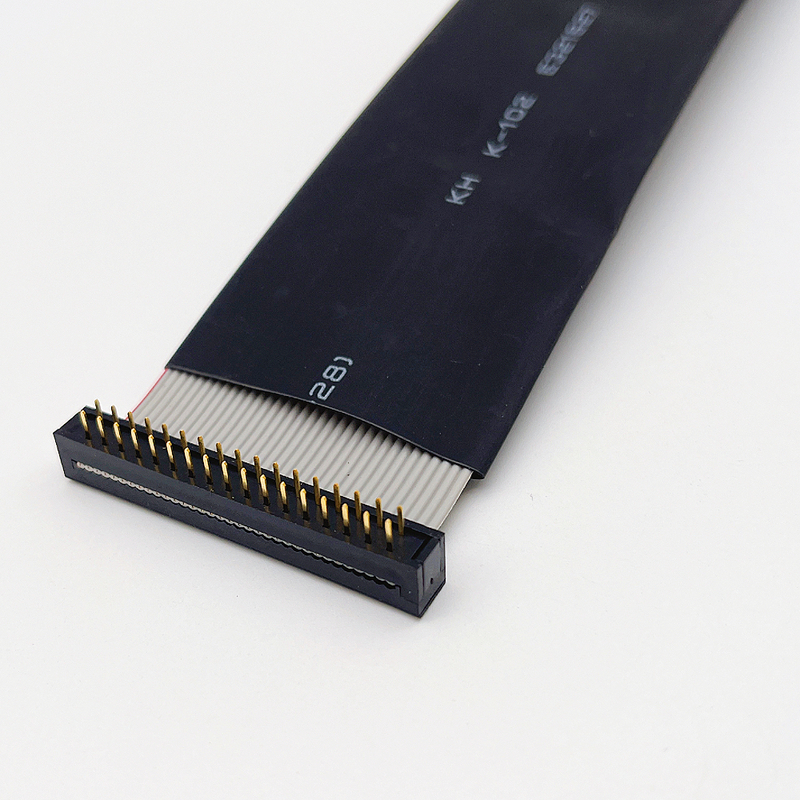

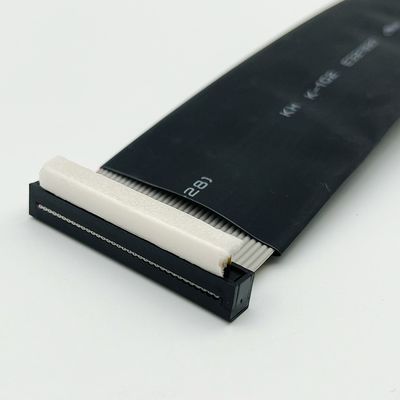

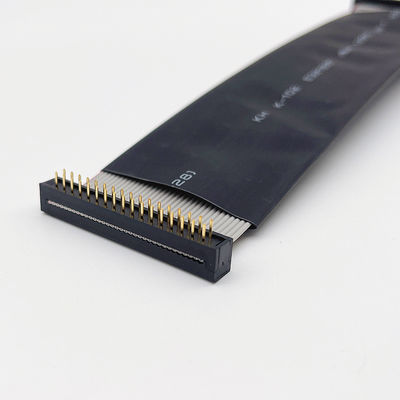

DIP 2.54mm 6-64pin Cable Electrical Wire To Board Connector For Flat Cable Of Wire Harness
Specific material electrical parameters | |||
IDC Connector Specifications: | Wire specifications: | ||
Rated Current: | 1.5/2.0/3.0AMP | Insulator Material: | PVC |
Contact Resistance: | 20mΩ Max | Conductor: | 7/0.127mm(Tin Plated Copper) |
Withstand Voltage: | 500V AC/DC | Cable Color: | Wires Red Marking Grey Side |
Insulation Resistance: | 1000MΩ Min | Cable Length | Be Customized |
Operation Temperature: | -40°c to +105°c | Cable Testing: | |
Connector: | IDC Socket | Contact Resistance: | 3Ω Max. |
Pitch: | 1.27/2.0/2.54mm | Insulation Resistance: | 10MΩ Min. |
Positions: | 6P~100P | Withstand Voltage: | DC300V, 5second |
Contact Material: | Brass | 100% Open & Short Test | |
Contact Plating: | Au or Sn Over Ni | All materials comply with"ROHS" environmental protection standards | |
Insulator Material: | PBT(UL94V-0) |
Item name: Flat Cable
1. Product features: IDC Flat Ribbon Cable Assemblies,compliant with RoHs,could be customized,UL2651/UL2678 30awg/28awg/26awg,0.635mm,1.0mm,1.27mm,2.0mm,2.54mm pitch all available.
2. Material: copper alloy, copper alloy, nickel or nickel alloy.
3. Products are widely used in:industrial and power control,electronic communications,LED photoelectric,liquid crystal display,servo system,medical equipment,automotive electronics,computer motherboards and consumer electronics etc.
Service idea:
1. Committed to providing customers with customized, small batch, multi variety, one-stop services.
2. Quick response and effective communication, refined service timely delivery.
3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.
Management Concept
Responsibility Innovation Integrity Win-Win;
Team Culture
Thanksgiving Valute Respects Team efforts;
Service Purpose
Quality fisrt Customer Satisfaction Professinal Improving;
Sustainable Manner
HONSHI grow in a sustainable manner,to support our valued customers with flexibly customized interconnect solutions.
