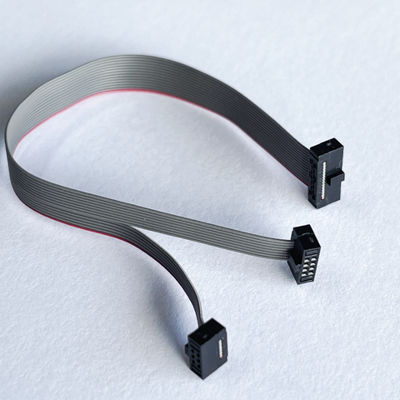

6 8 10PIN 20PIN 40PIN Female to Female Socket 1.27mm Flat IDC Ribbon Cable

Detail produk:

Tempat asal:	Cina
Nama merek:	HONSHI
Sertifikasi:	ROHS/SGS/UL
Nomor model:	B21XXAAXXXXB01

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	100 buah
Harga:	0.1-0.5 usd
Kemasan rincian:	Baki/tas Pe
Waktu pengiriman:	7-15 hari
Syarat-syarat pembayaran:	T/t, paypal
Menyediakan kemampuan:	500000kpcs

Kontak

Detil Deskripsi produk

Aplikasi:	Elektronik	Nama Produk:	Kabel Pita Datar
Bahan kontak:	Kuningan	Pelapis:	Ni/emas Flash/5u''emas/10u''emas/15u''emas/30u''emas
Nilai arus:	1A/2A/3A	Resistensi kontak:	20mΩ maks
Suhu operasi:	40 C~+105	Kemasan:	PE.Tas/Tape&Reel
Panjang:	Panjang Disesuaikan	Pin:	6pin-100pin (disesuaikan)
Kabel:	Kabel UL 30AWG

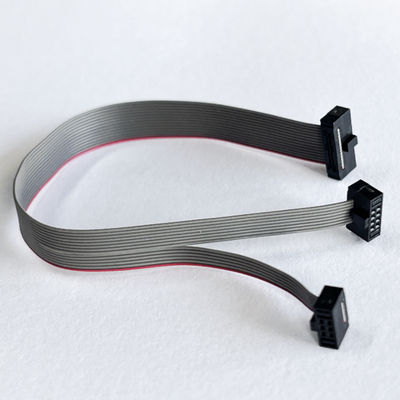

6 8 10PIN 20PIN 40PIN Female to Female Socket 1.27mm Flat IDC Ribbon Cable

Specific material electrical parameters
IDC Connector Specifications:		Wire specifications:
Rated Current:	1.5/2.0/3.0AMP	Insulator Material:	PVC
Contact Resistance:	20mΩ Max	Conductor:	7/0.127mm(Tin Plated Copper)
Withstand Voltage:	500V AC/DC	Cable Color:	Wires Red Marking Grey Side
Insulation Resistance:	1000MΩ Min	Cable Length	Be Customized
Operation Temperature:	-40°c to +105°c	Cable Testing:
Connector:	IDC Socket	Contact Resistance:	3Ω Max.
Pitch:	1.27/2.0/2.54mm	Insulation Resistance:	10MΩ Min.
Positions:	6P~100P	Withstand Voltage:	DC300V, 5second
Contact Material:	Brass	100% Open & Short Test
Contact Plating:	Au or Sn Over Ni	All materials comply with"ROHS" environmental protection standards
Insulator Material:	PBT(UL94V-0)

Drawing:FLAT CABLE.pdf

Item name: Flat Cable

1. Product features: IDC Flat Ribbon Cable Assemblies,compliant with RoHs,could be customized,UL2651/UL2678 30awg/28awg/26awg,0.635mm,1.0mm,1.27mm,2.0mm,2.54mm pitch all available.

2. Material: copper alloy, copper alloy, nickel or nickel alloy.

3. Products are widely used in:industrial and power control,electronic communications,LED photoelectric,liquid crystal display,servo system,medical equipment,automotive electronics,computer motherboards and consumer electronics etc.

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.
2. Quick response and effective communication, refined service timely delivery.
3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

Management Concept
Responsibility Innovation Integrity Win-Win;

Team Culture
Thanksgiving Valute Respects Team efforts;

Service Purpose
Quality fisrt Customer Satisfaction Professinal Improving;

Sustainable Manner
HONSHI grow in a sustainable manner,to support our valued customers with flexibly customized interconnect solutions.

For assistance with Compliance, please contact sales@dghonshi.com.
