Rumah Produk Konektor Header Kotak

2.54mm Box Header Connector 6 8 10 20 30 40 64 Pin Straight Dip Type DC3

Detail produk:

Tempat asal:	Guangdong, Cina
Nama merek:	HONSHI
Sertifikasi:	ROHS/SGS/UL
Nomor model:	4813-136xxsxxxx01

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	100 buah
Harga:	0.01-0.3 usd
Kemasan rincian:	Baki/Tabung
Waktu pengiriman:	10-15 hari
Syarat-syarat pembayaran:	T/t, paypal
Menyediakan kemampuan:	100000kpcs

Kontak

Detil Deskripsi produk

Jenis:	KERIUHAN	Aplikasi:	PCB
Jenis kelamin:	pria	Nama Produk:	Konektor Header Kotak
Bahan kontak:	Kuningan	Nilai arus:	3AMP
Kontak Resistance:	20mΩ	Berlapis:	Emas pucat (1U") (dapat disesuaikan)
Sedang mengemas:	Tabung/Gulungan	Mencicipi:	mendukung Sampel
Peringkat tegangan:	40VAC	Tahan tegangan:	1000VAC/menit
Melempar:	2.54mm

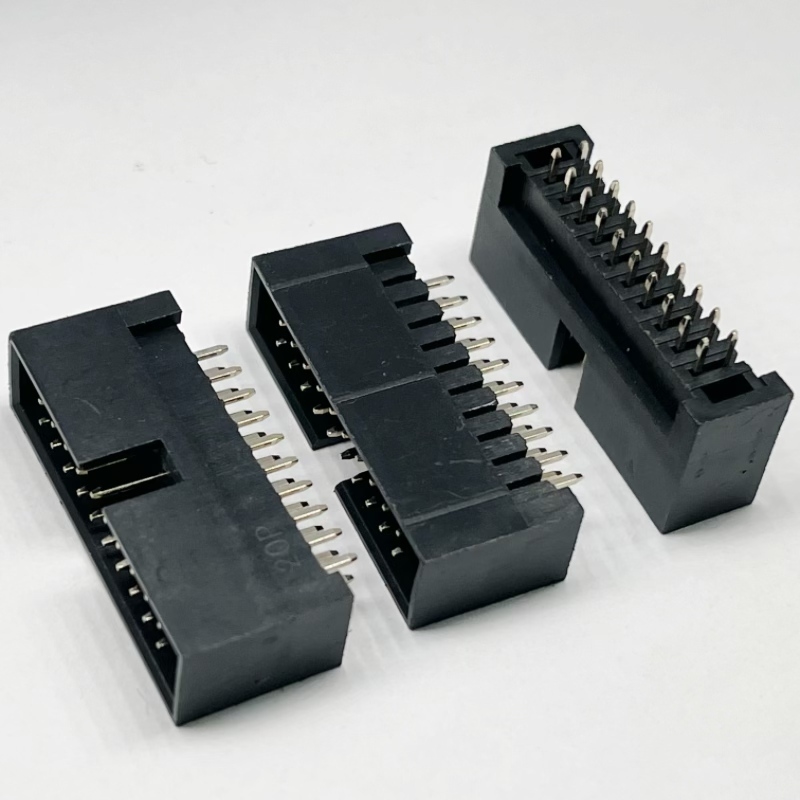

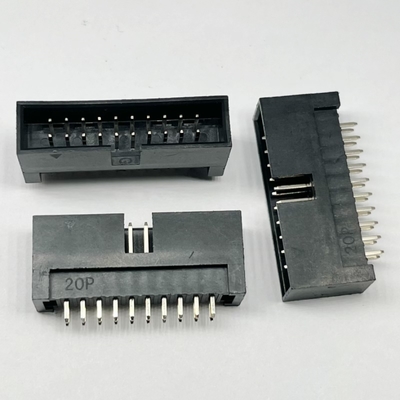

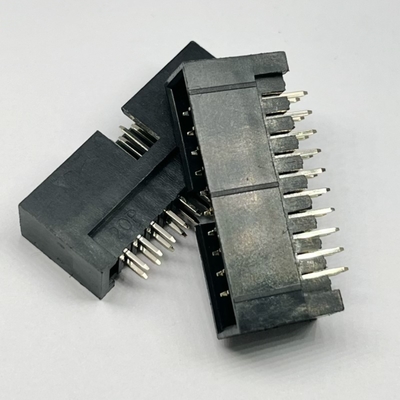

2.54mm Box Header Connector 20 pin Straight DIP DC3 Headers 2x10p Sample Supported

Product Name	Box Header Connector
Pitch	1.27/1.27X2.54/2.0/2.54mm
Positions	6P-100P
Current Rating	1A/2A/3A
Contact Resistance	20mΩ Max
Withstand Voltage	500V /1000V AC/DC
Insulation Resistance	1000mΩ Min
Operation Temperature	﹣40℃ to +105℃
Contact Material	Brass
Contact Plating	Au Or Sn over Ni
Insulator Material	PA6T/PA9T ( UL94V-0 )

Product name: Box Header Connector

1. Product features: high temperature resistant to high voltage electrical conductivity

2. Product material: PA6T/PA9T/LCP/PBT, plating surface treatment: gold-plated or tin plating

3. Scope of application: Mainly suitable for data communication and electronic equipment and welding on the PCB board, connected to the corresponding specification of IDC ribbon cable and the other circuit designers need to circuit. And if current usually transmission control signal

4. Widely used in fields such as smart wearables, mobile communications, digital cameras, automobiles, medical devices, etc

Service idea:

1. Committed to providing customers with customized, small batch, multi variety, one-stop services.

2. Quick response and effective communication, refined service timely delivery.

3. Strict implementation of the ISO 9001 and ERP system, the supply of materials strictly in accordance with the quality and standard production control.

4. Free sample, the quality is safe and reliable, the price is competitive.
